Description

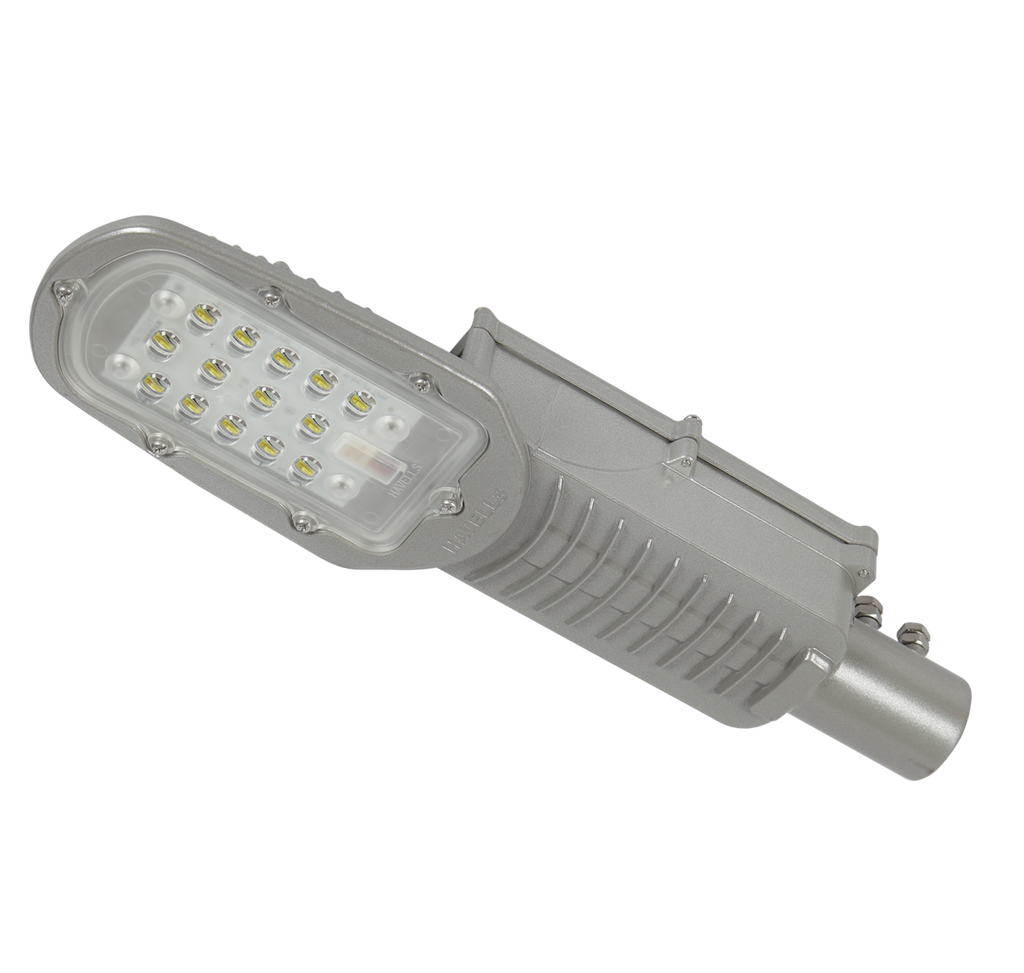

 Housing & FinishPressure die-cast aluminium alloy for housing (heat sink) for effective thermal management, sturdiness, excellent corrosion resistant, separate optical and control gear compartment & top opening for easy maintenance. Polyster powder coated grey after phosphochromate treatment. |
 OpticsHigh efficiency polycarbonate UV stablized cover with integrated Lens to ensure Asymmetrical batwing light distribution. (For detailed photometric data,please refer LM79 report & IES file). |
 Light sourceHigh efficiency long life LED module with SMD LED package mounted on MCPCB. Lumen efficacy of LED >140 lm/W. |
 Electronic DriverPowered by built-in potted LED driver (SMPS based constant current supply) with lower THD, Output Open / Short Circuit protection, Phase to Phase protection (Operation at 415 V AC), Over Voltage protection, Surge Voltage protection upto 10 kV with SPD & other safety test as per IS 15885 Part-2/Sec 13, CISPR 15. |
 MountingSuitable for side entry, pole mounting with bracket arm OD 35 mm - 42 mm Recommended mounting height with suitable inground reinforcement is 3 m - 6 m . |
|
TECHNICAL SPECIFICATION
| Wattage | 48 W |
| Nominal voltage | 240 V |
| Power factor | ≥ 0.95 |
| THD | ≤ 10 % |
| Colour temperature | 5700 K |
| Mains Current | 0.210 A |
| CRI | ≥ 70 |
| System Lumens | 4800 lm |
| Colour of Fixture | Grey |
| Weight | 2.8 kg |
| DIMENSION | 42 cm x 12.4 cm x 7.2 cm |
| Class Declaration | Class I |
| IP Rating | IP66 |
| IK Rating | IK07 |
